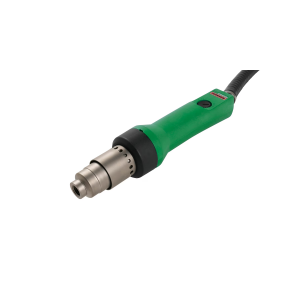

PENWELD 305-S, 1000W, 3m, M14
-Robust and simple construction
- Short and light for longer working periods
- Recessed rotary knob against accidental adjustment
- High quality, sturdy hose
DetailsSolid external-air welder
The PENWELD S from Leister is a solid, external-air operated welding device for plastic welding. The handy hot air welder is available in various performance classes. All device variations have a particularly powerful and durable heating element. Compactly built, the PENWELD S welds plastic in tight spaces and is ideal for hot gas draw welding of detailed plastic tanks, air washers, pump wells and more.
For this purpose, the PENWELD S can be operated with push-fit nozzles and, above all, with professional, high-quality Leister screw-on nozzles. The recessed temperature setting knob in the handle allows very precise setting and prevents unintentional adjustment of the hot air temperature, which increases process safety. The electronic components of the PENWELD S are, as usual with Leister, specially encased and protected against moisture and contamination. Furthermore, the hot air welder has been equipped with various important protective functions that ensure its reliability and safe welding processes in various applications for a long time. The particularly high-quality, sturdy air hose with integrated power cable is designed for harsh industrial environments, which makes it very durable. In addition, the hose is connected to the PENWELD S by means of a connection that can be rotated 310 degrees, which increases the user’s working freedom. For individual needs, the external-air plastic welding unit can be operated with different Leister air sources such as compressors and blowers. The PENWELD S is available in various versions for specific applications: air hoses of different lengths (3 m and 8 m), various power levels (1000 W and 1550 W) and connection for plug-in or screw-in nozzles. Leister offers this hot gas welder also in the high-end version with display, LED work light and lightweight hose: the PENWELD A.
Technical Data
Article：173.374
Voltage：230 V
Frequency：50/60 Hz
Power：1000 W
Temperature：60 - 450 °C
Temperature setting stepless：Yes
Air hose length：3 m
Display：No
Outdooruse：Yes
Nozzle connection ø：M14
Length：254 mm
Device diameter：54mm
Handle diameter：37 mm
Weight：0.41 kg
Plug：US, 2 poles, 15A
Approvals：CE; UKCA
Protection class：II
Country of origin：Switzerland
Highlights Robust indoor and outdoor welding machine
√Versatiledue to extensive nozzle range
√ Application-specific due to various device variants
√ Designed for various air sources
√ Durable due to comprehensive protective functions
Article number | Item name | Voltage | Power | Air hose length | Nozzle connection ø | Plug |
173.374 | PENWELD 305-S, 120V/1000W, 3m, M14, US plug | 120 V | 1000 W | 3 m | M14 | US, 2 poles, 15A |
173.372 | PENWELD 305-S, 230V/1000W, 3m, M14, EU plug | 230 V | 1000 W | 3 m | M14 | EU, 2 poles, 16A |
173.373 | PENWELD 305-S, 230V/1000W, 3m, M14, CH plug | 230 V | 1000 W | 3 m | M14 | CH T11, 2 poles, 10A |
173.375 | PENWELD 305-S, 230V/1000W, 8m, M14, EU plug | 230 V | 1000 W | 8 m | M14 | EU, 2 poles, 16A |
173.378 | PENWELD 500-S, 230V/1550W, 3m, EU plug | 230 V | 1550 W | 3 m | 31.5 mm / 1.25 in | EU, 2 poles, 16A |
173.379 | PENWELD 500-S, 120V/1550W, 3m, US plug | 120 V | 1550 W | 3 m | 31.5 mm / 1.25 in | US, 2 poles, 15A |
177.345 | PENWELD 500-S, 230V/1550W, 3m, CN plug | 230 V | 1550 W | 3 m | 31.5 mm / 1.25 in | CN, 2 poles, 10A |
