Note: It cannot be used in HP printers.
| Model |
| |
| Working Width | 1800mm | |
| Voltage | 24V | |
| Motor Power | 36W | |
| Maximum Diameter Of Hosting Media | Ø260mm | |
| Packing Size | 2600 x 380 x 380mm | |
| Gross Weight | 35kg | |

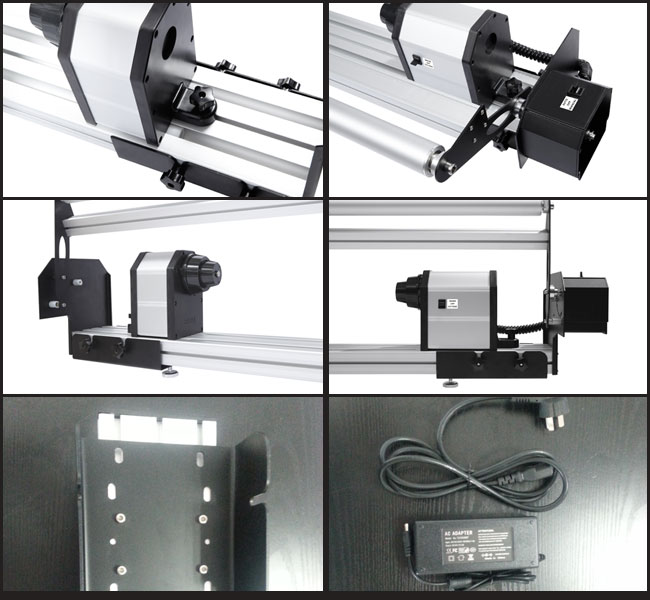

• Automated take-up system
• Inductive tension system
• Novel double-track structure
• Automatic seitch: Automatic rolling according to induction of the tension bar.
• Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.

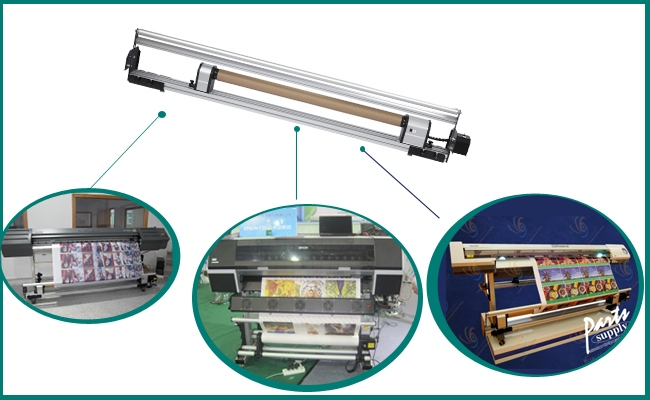

• Specialized universal linking slab, apply to any printers.
• Automatic rewinding, unattended production
• Tension control system could expands its application range for outdoor and indoor printing material,fabric with no elasticity and fiber material
• Bear the weight of 40-50KG
• Fixed directly without drilling holes in the machine
• Extend lifespan of motors
• Automatic system without workman that help you save cost, save space
• More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.
To be used with:

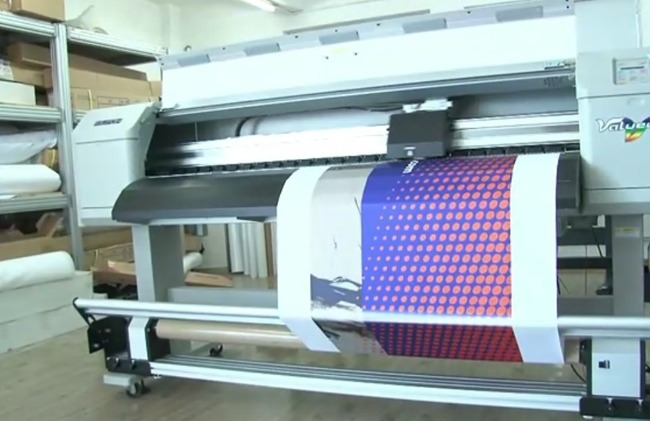

Mimaki / Roland Large Format

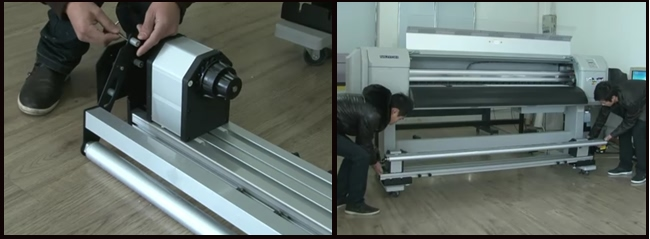

| 1.Open box, and separate the connecting plate and the take-up system. | 2. Mount the connecting plate. |

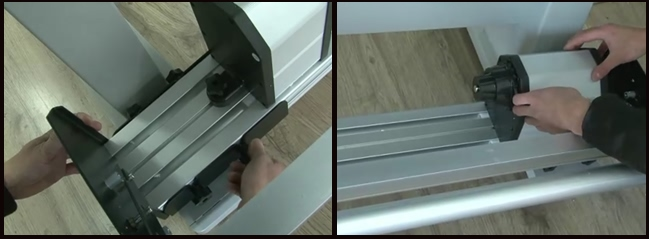

| 3. Loosen tension bar and set screws. | 4. Put the take-up system on the connecting platete. |

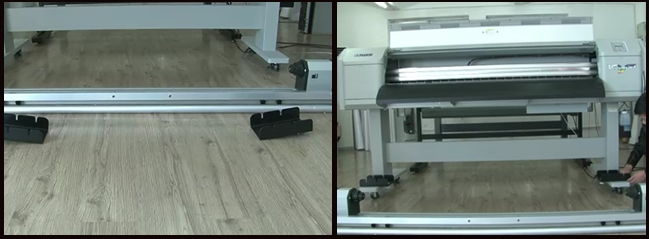

| 5. Tighten the screws to settle take-up system. | 6. Adjust the position of dynamic roll axis on take-up system and fasten the axis |

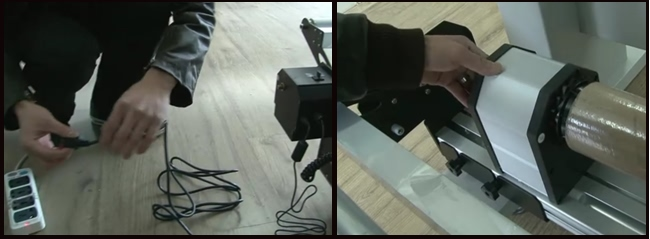

| 7. Connect the power transformer (12V) to power supply. | 8. Load the paper roll. |
| 9. Attach take-up system to the printed material. | 10. Adjust the tension and the switch. |
11. Installations complete.Packing List:
 | Take up system | 1set |
 | Power Cable and 24V DC Power Supply | 1set |
 | Hexagon Wrench | 1pc |
 | User Manual | 1pc |
